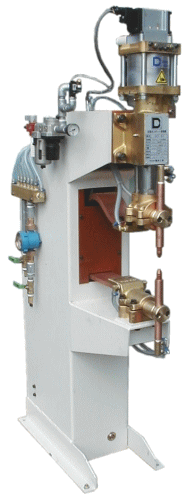

STATIONARY SPOT WELDING MACHINE
									The Main Feature *The Timer is in the main body of the welding machine *The fixed current control method is adopted *The welding condition can be arbitrarily set in the teaching box *Body is special designed for high durability and high performance *Transformer is very reliable, compact size and high power, as moulding is made in vacuum atmosphere, insulation class F
Type DST-35-4-06 DST-50-4-06 DST-75-4-06 DST-100-4-06 Rated Capacity kVA 35 50 75 100 Power-supply voltage V 480 Primary rated voltage V 480 Rated frequency Hz 60 Primary voltage at the maximumm load V 460 Rated max capacity kVA 110 128 220 300 Permissible duty cycle % 8 8 6 6 Max short circuit current A 17000 19000 22000 26000 Max welding current A 15000 17000 20000 24000 Range of current adjustment % 100〜30 Max electrode force N 5880 5880 9800 9800 Air pressure MPa 0.6 Standard throat depth mm 400 Standard throat gap mm 200 Weld stroke mm 75 Flowrate of compressed air L/min 8 8 10 10
Brochure of STATIONARY SPOT WELDING MACHINE
Brochure of Servo Drive Unit for STATIONARY SPOT WELDING MACHINE
