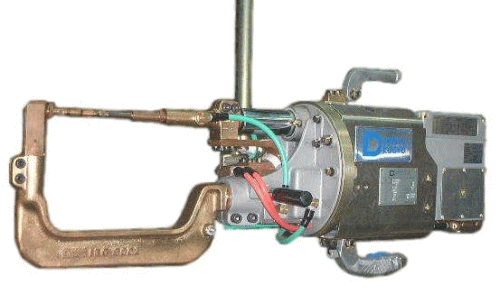

IT GUN ® (Portable Spot Welding Gun with a built-in Transformer and Welding Controller)

The Main Feature 1. Welding Controller can be chosen in built-in type or separated type freely     ITC/ITX---Transformer and Welding Controller built-in type     ITNC/ITNX---Transformer built-in, Welding Controller separated type 2. Balance serious-consideration design         With all welding position, balance is good and doesn't give heavy work to         an operator 3. Built-in transformer of heavy duty         A bult-in transformer of the heavy duty is small and light-weight 4. Saved type of energy         As compared with transformer separated type, electric-power consumption         reduce to 1/3〜1/4 5. Easy maintenance         Decomposition and assembly is easy and it reduces maintenance time drastically 6. Safe serious-consideration design         It is design, which anticipated the danger and gave top priority to safe insurance 7. Acceptance to a special configuration's requirement         It is possible to satisfy requirement of a special configuration from custoers *IT Gun is the registered trademark of Denyo Kogyo Co.,

*Basic secifications for Welding gun Welding Contoroller built-in type ITC, ITX Without Welding controller type ITNC, ITNX Max short circuit current 15,000A〜20,000A Air pressure range 0.49Mpa (5kf/cm²) Stoke(max) 200mm Throat(L) 100, 200, 350, 500mm Weight 60〜100kgf *Basic specifications for Welding controller Welding controller type PHS-4015 Teaching-box type TB31-P0-2A Primary voltage 1φ, AC415V±10% Frequency 50Hz, 60Hz *Basic specifications for Transformer Type MT019 MT024 MT030 MT038 MT046 MT056 Rated primary voltage (V) 50Hz 380〜415 60Hz 400〜480 Secondary voltage (KVA) 50Hz 3.6〜39 4.5〜4.9 5.5〜6.1 7.3〜79 8.6〜9.4 10.5〜11.4 60Hz 3.8〜4.6 4.7〜5.7 5.8〜70 7.6〜9.2 9.0〜10.9 11.1〜13.3 Rated Capacity (KVa) (at 50% duty cycle) 19 24 30 38 45 56 Max welding current /Permissive duty cycle 16,000A/5% Rated Max input (at 400V)KVA 61.5 76 94 123 146 178 Equivalent continuous secondary current (A) 3,570
